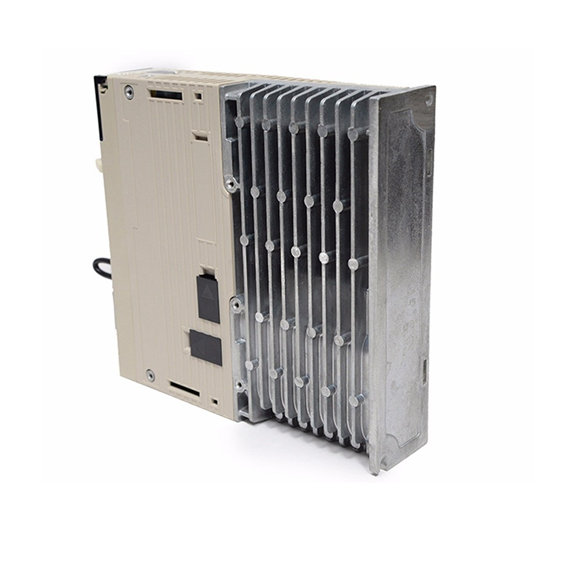

Yaskawa SERVOPACKs 50W SGDV-R70A11B/11A
$1.00
Part Number
Series#: Sigma-5
Model
Series#: Sigma-5
Brand
Yaskawa
Material
Others
▌Product Description
Product Details
Yaskawa SERVOPACKs 50W SGDV-R70A11B/11A We are First Class Yaskawa servomotors dealer and Yaskawa servomotors distributor in China. We can Supply Yaskawa electric automation parts,such as Yaskawa PLC,Yaskawa Servo Motor&Yaskawa servo drive,Yaskawa VFD,Yaskawa Robot and So on. Support All seriesl Yaskawa ∑5 SGMGV Rotary Servomotor&ServoPacks,Yaskawa ∑5 SGMJV Rotary Servomotor&ServoPacks,Yaskawa ∑7 SGM7G Rotary Servomotor&ServoPacks,Yaskawa ∑7 SGM7J Rotary Servomotor&ServoPacks 100% Original and new,In stock by Yaskawa Electric Delivery time: Ready in stock and 1 days for ship out MOQ: 1pcs
Specification
| Yaskawa Sigma-5 SERVOPACKs Servo drive type SGDV- @ | R70A@@A | R90A@@A | 2R8A@@A | 120A@@A008000 | ||
| A3A@/A5A@ | 01A@ | 04A@ | – | |||
| SGMAH-@ | ||||||
| SGMPH-@ | – | 01A@ | 04A@ | 15A@ | ||
| SGMJV-@ | A5A@ | 01A@ | 04A@ | – | ||
| SGMAV-@ | A5A@ | 01A@ | 04A@ | 10A@ | ||
| SGMEV-@ | – | 01A@ | 04A@ | 15A@ | ||
| 50 | 100 | 400 | 1500 | |||
| Max. applicable motor capacity W | ||||||
| Continuous output current Arms | 0.66 | 0.91 | 2.8 | 11.6 | ||
| Max. output current Arms | 2.1 | 2.9 | 9.3 | 28 | ||
| Input power | Single-phase, 200 to 230 VAC + 10 to -15% (50/60 Hz) | |||||
| Main circuit | ||||||
| Supply Control circuit | Single-phase, 200 to 230 VAC + 10 to -15% (50/60 Hz) | |||||
| Control method | Single phase full-wave rectification / IGBT / PWM / sine-wave current drive method | |||||
| Feedback | Serial encoder (incremental/absolute) | |||||
| Usage/storage temperature | 0 to +55 °C / -20 to 85 °C | |||||
| Usage/storage humidity | 90%RH or less (non-condensing) | |||||
| Altitude | 1000m or less above sea level | |||||
| Vibration/shock resistance | 4.9 m/s2 / 19.6 m/s2 | |||||
| Configuration | Base mounted | |||||
| Approx. weight Kg | 0.9 | 1 | 2.8 | |||
