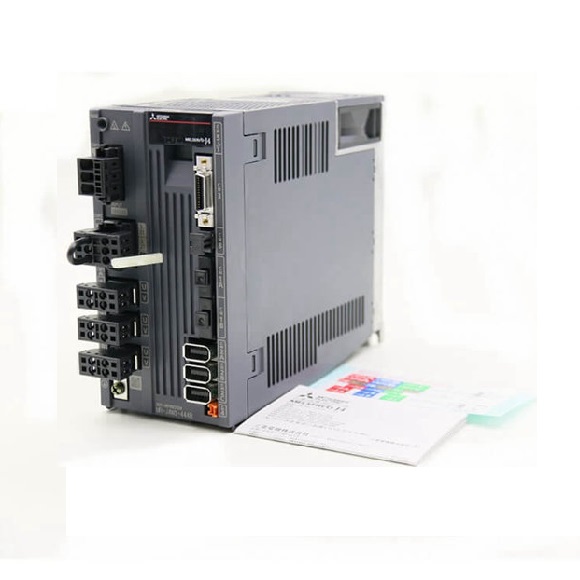

Mitsubishi MELSERVO-J4 Servo Amplifier With Drive 400W MR-J4W3-444B
$1.00
Part Number
Series#: AmplifierMELSERVO-J4
Model
Series#: AmplifierMELSERVO-J4
Brand
Mitsubishi Electric
Material
Others
▌Product Description
Product Details
Mitsubishi MELSERVO-J4 Servo Amplifier With Drive 400W MR-J4W3-444B We are First Class mitsubishi servo drive dealer and mitsubishi servo drive distributor in China. We can Supply mitsubishi electric automation parts,such as Mitsubishi PLC,Mitsubishi Servo Motor&mitsubishi servo drive,Mitsubishi HMI,Mitsubishi VFD and So on. 100% Original and new,In stock by Mitsubishi Automation Delivery time: Ready in stock and 1 days for ship out MOQ: 1pcs
Specification
| Model MR-J4W3- | 222B | 444B | |
| Rated voltage | 3-phase 170 V AC | ||
| Output | Rated current | 2.8 | |
| (each axis) [A] | |||
| Power supply | 3-phase or 1-phase 200 V AC to 240 V AC, 50 Hz/60 Hz | ||
| /Frequency | |||
| Rated current | 7.8 | ||
| (Note 9) [A] | |||
| Main circuit power supply input | Permissible voltage fluctuation | 3-phase or 1-phase 170 V AC to 264 V AC, 50 Hz/60 Hz | |
| Permissible frequency fluctuation | Within ±5% | ||
| Power supply capacity [kVA] | Refer to section 10.2. | ||
| Inrush current [A] | Refer to section 10.5. | ||
| Power supply | 1-phase 200 V AC to 240 V AC, 50 Hz/60 Hz | ||
| /Frequency | |||
| Rated current [A] | 0.4 | ||
| Permissible voltage fluctuation | 1-phase 170 V AC to 264 V AC | ||
| Control circuit power supply input | Permissible frequency fluctuation | Within ±5% | |
| Power consumption | 55 | ||
| [W] | |||
| Inrush current [A] | Refer to section 10.5. | ||
| Interface power supply | Voltage/Frequency | 24 V DC ± 10% | |
| Power supply capacity | 0.45 A (Note 1) | ||
| Control method | Sine-wave PWM control, current control method | ||
| Reusable regenerative energy (Note 2) [J] | 30 | ||
| Moment of inertia J equivalent to the permissible charging amount (Note 3) | |||
| [× 10-4 kg • m2] | |||
| Capacitor regeneration | 6.08 | ||
| Mass equivalent to the permissible charging amount | LM-H3 | 6.7 | |
| (Note 4) [kg] | |||
| LM-K2 LM-U2 | 15 | ||
| Built-in regenerative resistance [W] | 100 | ||
| Dynamic brake | Built-in | ||
| SSCNET III/H command communication cycle (Note 7) | 0.222 ms (Note 8), 0.444 ms, 0.888 ms | ||
| Communication function | USB: Connect a personal computer (MR Configurator2 compatible) | ||
| Encoder output pulse | Not compatible | ||
| Analog monitor | None | ||
| Fully closed loop control | Not compatible | ||
| Scale measurement function | Not compatible | ||
| Overcurrent shut-off, regenerative overvoltage shut-off, overload shut-off (electronic thermal), servo motor overheat protection, encoder error protection, regenerative error protection, undervoltage protection, instantaneous power failure protection, overspeed protection, and error excessive protection | |||
