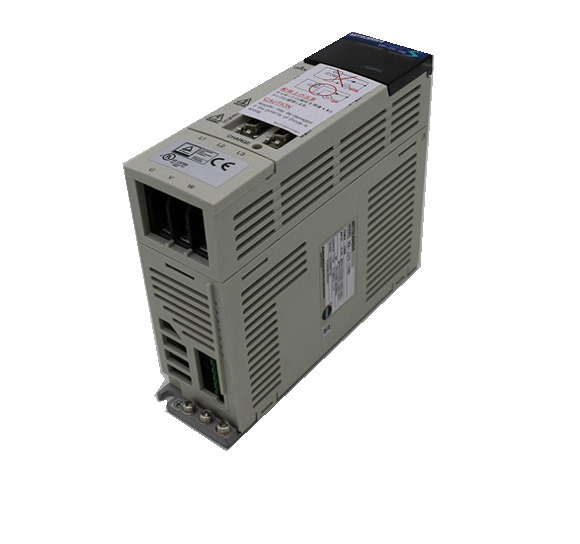

Mitsubishi Servo Drive MR-J2S 750W MR-J2S-70B
$1.00
Part Number
Series#: MELSERVO-J2S
Model
Series#: MELSERVO-J2S
Brand
Mitsubishi Electric
Material
Others
▌Product Description
Product Details
Series#: Mitsubishi Servo Drive Product Details Mitsubishi Servo Drive MR-J2S 750W MR-J2S-70B We are First Class mitsubishi servo drive dealer and mitsubishi servo drive distributor in China. We can Supply mitsubishi electric automation parts,such as Mitsubishi PLC,Mitsubishi Servo Motor&mitsubishi servo drive,Mitsubishi HMI,Mitsubishi VFD and So on. 100% Original and new,In stock by Mitsubishi Automation Delivery time: Ready in stock and 1 days for ship out MOQ: 1pcs
Specification
| Mitsubishi Servo amplifier model MR-J2S- | 10B | 20B | 40B | 60B | 70B(-UM) | 100B | 200B | 350B | 500B | 700B | 11KB | 15KB | 22KB | 30KB | 37KB | 10B1 | 20B1 | 40B1 |
| Mitsubishi Servo Drive MR-J2S | — | MR-HP30KA | — | |||||||||||||||
| 1-phase 200 to 230VAC 50/60Hz | 1-phase 100 to 120VAC 50/60Hz | |||||||||||||||||
| Control circuit power supply | ||||||||||||||||||
| Voltage/frequency | ||||||||||||||||||
| Permissible voltage fluctuation | 1-phase 170 to 253VAC | 1-phase 85 to 127VAC | ||||||||||||||||
| Permissible frequency fluctuation | ±5% maximum | ±5% maximum | ||||||||||||||||
| Power consumption (W) | 50 | 50 | ||||||||||||||||
| Main circuit power supply Voltage/frequency (Note 1) | 3-phase 200 to 230VAC 50/60Hz or 1-phase 230VAC 50/60Hz (Note 2) | 3-phase 200 to 230VAC 50/60Hz (Note 2) | The servo amplifier’s main circuit power is supplied from the converter unit. | 1-phase 100 to 120VAC 50/60Hz (Note 2) | ||||||||||||||
| Permissible voltage fluctuation | 3-phase 200 to 230VAC:170 to 253VAC 1-phase 230VAC: 207 to 253VAC | 3-phase 170 to 253VAC | 1-phase 85 to 127VAC | |||||||||||||||
| Permissible frequency fluctuation | ±5% maximum | ±5% maximum | ||||||||||||||||
| Control system | Sine-wave PWM control/current control system | |||||||||||||||||
| Dynamic brake | Built-in (Note 3) | External option | Built-in (Note 3) | |||||||||||||||
| Safety features | Overcurrent shutdown, regeneration overvoltage shutdown, overload shutdown (electronic thermal), servo motor overheat protection, encoder fault protection, regeneration fault protection, undervoltage/sudden power outage protection, overspeed protection, excess error protection | |||||||||||||||||
| Maximum command input at the position control | Approximately 10Mpps | |||||||||||||||||
| Structure | Self-cooling, open (IP00) | Fan cooling, open (IP00) | Self-cooling, open (IP00) | |||||||||||||||
| Ambient temperature | 0 to 55°C (32 to 131°F) (non freezing), storage: –20 to 65°C (–4 to 149°F) (non freezing) | |||||||||||||||||
| Ambient humidity | 90% RH maximum (non condensing), storage: 90% RH maximum (non condensing) | |||||||||||||||||
| Atmosphere | Indoors (no direct sunlight); no corrosive gas, inflammable gas, oil mist or dust | |||||||||||||||||
| Elevation | 1000m (3280ft) or less above sea level | |||||||||||||||||
| Vibration | 5.9m/s2 maximum | |||||||||||||||||
| Mass (kg [lb]) | 0.7(1.5) | 0.7(1.5) | 1.1(2.4) | 1.1(2.4) | 1.7(3.7) | 1.7(3.7) | 2.0(4.4) | |||||||||||
