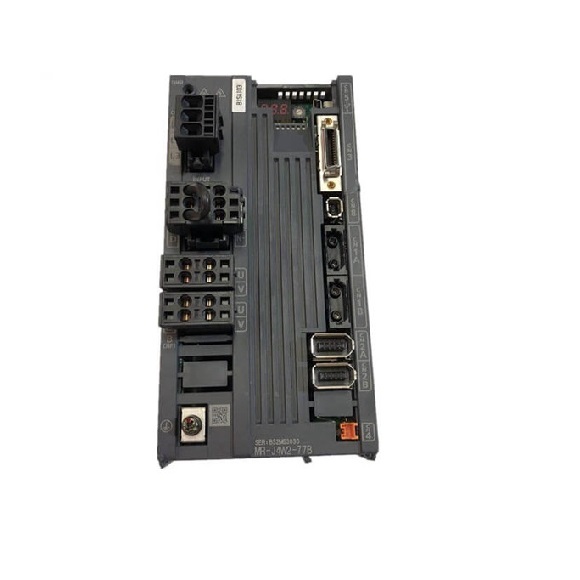

Mitsubishi MELSERVO-J4 Servo Amplifier With Drive 750W MR-J4W2-77B
$1.00
Part Number
Series#: AmplifierMELSERVO-J4
Model
Series#: AmplifierMELSERVO-J4
Brand
Mitsubishi Electric
Material
Others
▌Product Description
Product Details
Mitsubishi MELSERVO-J4 Servo Amplifier With Drive 750W MR-J4W2-77B We are First Class mitsubishi servo drive dealer and mitsubishi servo drive distributor in China. We can Supply mitsubishi electric automation parts,such as Mitsubishi PLC,Mitsubishi Servo Motor&mitsubishi servo drive,Mitsubishi HMI,Mitsubishi VFD and So on. 100% Original and new,In stock by Mitsubishi Automation Delivery time: Ready in stock and 1 days for ship out MOQ: 1pcs Qty: 1
Specification
| Mitsubishi MELSERVO-J4 Servo Amplifier With Drive MR-J4W2- | 22B | 44B | 1010B |
| Output Rated voltage | 3-phase 170 V AC | ||
| Rated current (each axis) [A] | 1.5 | 2.8 | 6 |
| Main circuit power supply input | 3-phase or 1-phase 200 V AC to 240 V AC, 50 Hz/60 Hz | 3-phase 200 V AC to 240 V AC, 50 Hz/60 Hz | |
| Voltage/Frequency | |||
| Rated current (Note 11) [A] | 2.9 | 5.2 | 9.8 |
| Permissible voltage fluctuation | 3-phase or 1-phase 170 V AC to 264 V AC | 3-phase 170 V AC to 264 V AC | |
| Permissible frequency fluctuation | Within ±5% | ||
| Power supply capacity [kVA] | Refer to section 10.2. | ||
| Inrush current [A] | Refer to section 10.5. | ||
| Control circuit power supply input Voltage/Frequency | 1-phase 200 V AC to 240 V AC, 50 Hz/60 Hz | ||
| Rated current [A] | 0.4 | ||
| Permissible voltage fluctuation | 1-phase 170 V AC to 264 V AC | ||
| Permissible frequency fluctuation | Within ±5% | ||
| Power consumption | 55 | ||
| [W] | |||
| Inrush current [A] | Refer to section 10.5. | ||
| Interface power supply Voltage | 24 V DC ± 10% | ||
| Power supply capacity | 0.35 A (Note 1) | ||
| Control method | Sine-wave PWM control, current control method | ||
| Capacitor regeneration | 17 | 21 | 44 |
| Reusable regenerative energy (Note 2) [J] | |||
| Moment of inertia J equivalent to the permissible charging amount (Note 3) | |||
| [× 10-4 kg • m2] | |||
| 3.45 | 4.26 | 8.92 | |
| 3.8 | 4.7 | 9.8 | |
| Mass equivalent to the permissible charging amount | |||
| (Note 4) [kg] | |||
| LM-H3 | |||
| LM-K2 LM-U2 | |||
| 8.5 | |||
| 10.5 | 22 | ||
| Built-in regenerative resistance [W] | 20 | 100 | |
| Dynamic brake | Built-in | ||
| SSCNET III/H command communication cycle (Note 9) | 0.222 ms, 0.444 ms, 0.888 ms | ||
| Communication function | USB: Connect a personal computer (MR Configurator2 compatible) | ||
| Encoder output pulse | Compatible (A/B-phase pulse) | ||
| Analog monitor | None | ||
| Fully closed loop control | Compatible (Note 8) | ||
| Scale measurement function | Compatible (Note 10) | ||
| Load-side encoder interface | Mitsubishi Electric high-speed serial communication (Note 6) | ||
| Overcurrent shut-off, regenerative overvoltage shut-off, overload shut-off (electronic thermal), servo motor overheat protection, encoder error protection, regenerative error protection, undervoltage protection, instantaneous power failure protection, overspeed protection, and error excessive protection | |||
| Protective functions | |||
