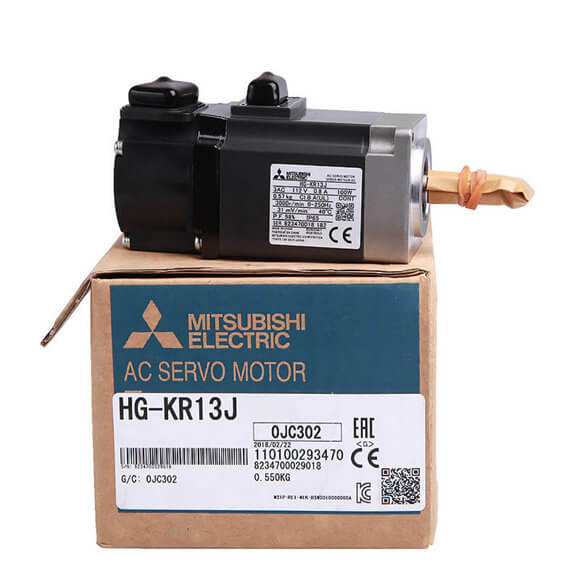

Mitsubishi MELSERVO-J4 Servomotor 100W HG-KR13J
$1.00
Part Number
Series#: MELSERVO-J4
Model
Series#: MELSERVO-J4
Brand
Mitsubishi Electric
Material
Others
▌Product Description
Product Details
Series#: Mitsubishi Servomotor Product Details Mitsubishi MELSERVO-J4 Servomotor 100W HG-KR13J MELSERVO-J4 SERIES 50W to 7KW(HG-KR and HG-MR series) We are First Class mitsubishi servomotors dealer and mitsubishi servomotors distributor in China. We can Supply mitsubishi electric automation parts,such as Mitsubishi PLC,Mitsubishi Servo Motor&mitsubishi servo drive,Mitsubishi HMI,Mitsubishi VFD and So on. 100% Original and new,In stock by Mitsubishi Automation Delivery time: Ready in stock and 1 days for ship out MOQ: 1pcs
Specification
| Mitsubishi Servo Motor MR-J4 | motor | HG-MR series(ultra-low inertia/small capacity) | HG-KR series (low inertia/small capacity) | |||||||
| Mitsubishi MELSERVO-J4 Servomotor | motor | 053(B) | 13(B) | 23(B) | 43(B) | 053(B) | 13(B) | 23(B) | 43(B) | 73(B) |
| Continuous running duty (Note 1) | [kW] | 0.05 | 0.1 | 0.2 | 0.4 | 0.05 | 0.1 | 0.2 | 0.4 | 0.75 |
| Rated output | ||||||||||
| [N•m] | 0.16 | 0.32 | 0.64 | 1.3 | 0.16 | 0.32 | 0.64 | 1.3 | 2.4 | |
| Rated torque | ||||||||||
| Maximum torque (Note 10) | [N•m] | 0.48 | 0.95 | 1.9 | 3.8 | 0.56 | 1.1 | 2.2 | 4.5 | 8.4 |
| Rated speed (Note 1) | [r/min] | 3000 | 3000 | |||||||
| Maximum speed (Note 10) | [r/min] | 6000 | 6000 | |||||||
| Instantaneous permissible speed (Note 10) | [r/min] | 6900 | 6900 | |||||||
| Power rate at continuous rated torque | [kW/s] | 15.6 | 33.8 | 46.9 | 114.2 | 5.63 | 13 | 18.3 | 43.7 | 45.2 |
| Standard | ||||||||||
| Rated current | [A] | 1 | 0.9 | 1.5 | 2.6 | 0.9 | 0.8 | 1.3 | 2.6 | 4.8 |
| Maximum current | [A] | 3.1 | 2.5 | 5.3 | 9 | 3.2 | 2.5 | 4.6 | 9.1 | 17 |
| Environment | Operation | 0 °C to 40 °C (non-freezing) | ||||||||
| Ambient temperature | ||||||||||
| Storage | -15 °C to 70 °C (non-freezing) | |||||||||
| Operation | 10 %RH to 80 %RH (non-condensing) | |||||||||
| Ambient humidity | ||||||||||
| Storage | 10 %RH to 90 %RH (non-condensing) | |||||||||
| Permissible load for the shaft(Note 8, 10) | [mm] | 25 | 30 | 25 | 30 | 40 | ||||
| L | ||||||||||
| Radial | [N] | 88 | 245 | 88 | 245 | 392 | ||||
| Thrust | [N] | 59 | 98 | 59 | 98 | 147 | ||||
| Mass (Note 3) | [kg] | 0.34 | 0.54 | 0.91 | 1.4 | 0.34 | 0.54 | 0.91 | 1.4 | 2.8 |
| Standard | ||||||||||
