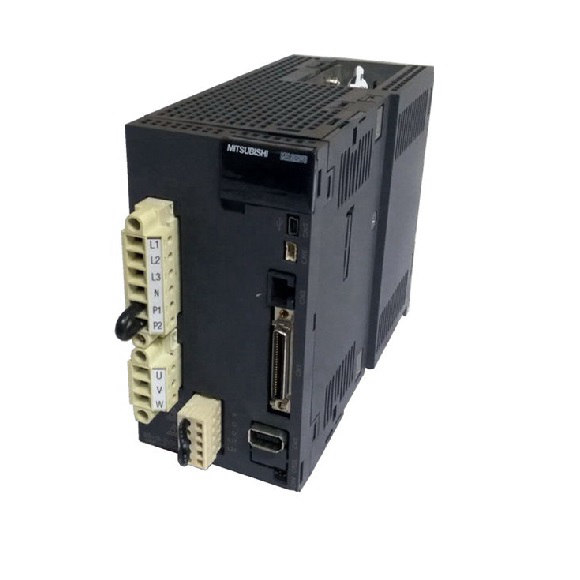

Mitsubishi Servo Drive MR-J3 3.5KW MR-J3-350A
$1.00
Part Number
Series#: MELSERVO-J3
Model
Series#: MELSERVO-J3
Brand
Mitsubishi Electric
Material
Others
▌Product Description
Product Details
Mitsubishi Servo Drive MR-J3 3.5KW MR-J3-350A MELSERVO-J3 SERIES 100W to 55KW We are First Class mitsubishi servo drive dealer and mitsubishi servo drive distributor in China. We can Supply mitsubishi electric automation parts,such as Mitsubishi PLC,Mitsubishi Servo Motor&mitsubishi servo drive,Mitsubishi HMI,Mitsubishi VFD and So on. 100% Original and new,In stock by Mitsubishi Automation Delivery time: Ready in stock and 1 days for ship out MOQ: 1pcs
Specification
| Servo Amplifier Model MR-J3- | 10A | 20A | 40A | 60A | 70A | 100A | 200AN | 350A | 500A | 700A | 11KA | 15KA | 22KA | 10A1 | 20A1 | 40A1 |
| Mitsubishi Servo Drive MR-J3 | S | S | S | S | S | S | S | S | S | S | S | – | – | S | S | S |
| 3-phase 200 to 230VAC 50/60Hz or1-phase 200 to 230VAC 50/60Hz (*10) | 3-phase 200 to 230VAC 50/60Hz | 1-phase 100 to 120VAC 50/60Hz | ||||||||||||||
| Voltage/Frequency (*1, *2) | ||||||||||||||||
| Permissible Voltage Fluctuation | For 3-phase 200 to 230VAC: 3-phase 170 to 253VACFor 1-phase 200 to 230VAC: 1-phase 170 to 253VAC | 3-phase 170 to 253VAC | 1-phase 85 to 132VAC | |||||||||||||
| Permissible Frequency Fluctuation | ±5% maximum | |||||||||||||||
| 1-phase 200 to 230VAC 50/60Hz (*10) | 1-phase 200 to 230VAC 50/60Hz | 1-phase 100 to 120VAC 50/60Hz | ||||||||||||||
| Voltage/Frequency | ||||||||||||||||
| Permissible Voltage Fluctuation | 1-phase 170 to 253VAC | 1-phase 85 to 132VAC | ||||||||||||||
| Permissible Frequency Fluctuation | ±5% maximum | |||||||||||||||
| Power Consumption (W) | 30 | 45 | 30 | |||||||||||||
| Interface Power Supply | 24VDC ±10% (required current capacity: 300mA (*7)) | |||||||||||||||
| – | 10 | 10 | 10 | 20 | 20 | 100 | 100 | 130 | 170 | – | – | – | – | 10 | 10 | |
| Built-in Regenerative Resistor | ||||||||||||||||
| External Regenerative Resistor (Standard Accessory) (*5, *6) | – | – | – | – | – | – | – | – | – | – | 500(800) | 850(1300) | 850(1300) | – | – | – |
| Control System | Sine-wave PWM control/current control system | |||||||||||||||
| Dynamic Brake | Built-in (*8, *13) | External option | Built-in (*8, *13) | |||||||||||||
| Safety Features | Overcurrent shutdown, regeneration overvoltage shutdown, overload shutdown (electronic thermal), Servo Motor overheat protection, encoder fault protection, regeneration fault protection, undervoltage/sudden power outage protection, overspeed protection, excess error protection | |||||||||||||||
| 1Mpps (when using differential receiver), 200kpps (when using open collector), (4Mpps) (*11) | ||||||||||||||||
| Maximum Input Pulse Frequency | ||||||||||||||||
| Positioning Feedback Pulse | Resolution per encoder/Servo Motor rotation: 262144 p/rev | |||||||||||||||
| Command Pulse Multiple | Electronic gear A/B multiple, A: 1 to 1048576, B: 1 to 1048576, 1/10 < A/B < 2000 | |||||||||||||||
| Positioning Complete Width Setting | 0 to ±10000 pulses (command pulse unit) | |||||||||||||||
| Excess Error | ±3 rotations | |||||||||||||||
| Torque Limit | Set by parameters or external analog input (0 to +10VDC/maximum torque) | |||||||||||||||
| Speed Control Mode | Analog speed command 1:2000, internal speed command 1:5000 | |||||||||||||||
| Speed Control Range | ||||||||||||||||
| Analog Speed Command Input | 0 to ±10VDC/rated speed (possible to change the speed in 10V using the parameter No. PC12.) (*12) | |||||||||||||||
| Speed Fluctuation Rate | ±0.01% maximum (load fluctuation 0 to 100%) 0% (power fluctuation ±10%) ±0.2% maximum (ambient temperature 25°C±10°C (59°F to 95°F)), when using analog speed command | |||||||||||||||
| Torque Limit | Set by parameters or external analog input (0 to +10VDC/maximum torque) (*12) | |||||||||||||||
| Torque Control Mode | 0 to ±8VDC/maximum torque (input impedance 10 to 12kΩ) (*12) | |||||||||||||||
| Analog Torque Command Input | ||||||||||||||||
| Speed Limit | Set by parameters or external analog input (0 to ±10VDC/rated speed) | |||||||||||||||
| Structure | Self-cooling open (IP00) | Fan cooling open (IP00) | Self-cooling open (IP00) | |||||||||||||
| Ambient Temperature (*6, *9) | 0 to 55°C (32 to 131°F) (non-freezing), storage: -20 to 65°C (-4 to 149°F) (non-freezing) | |||||||||||||||
| Ambient Humidity | 90% RH maximum (non-condensing), storage: 90% RH maximum (non-condensing) | |||||||||||||||
| Atmosphere | Indoors (no direct sunlight); no corrosive gas, inflammable gas, oil mist or dust | |||||||||||||||
| Elevation | 1000m or less above sea level | |||||||||||||||
| Vibration | 5.9m/s² maximum | |||||||||||||||
| Weight kg (lb) | 0.8(1.8) | 0.8(1.8) | 1.0(2.2) | 1.0(2.2) | 1.4(3.1) | 1.4(3.1) | 2.1(4.6) | 2.3(5.1) | 4.6(10) | 6 | ||||||
