General information
Product type designation	TP900 Comfort
Display
Design of display	TFT
Screen diagonal	9 in
Display width	195 mm
Display height	117 mm
Number of colors	16777216
Resolution (pixels)
● Horizontal image resolution	800 pixel
● Vertical image resolution	480 pixel
Backlighting
● MTBF backlighting (at 25 °C)	80 000 h
● Backlight dimmable	Yes; 0-100 %
Control elements
Keyboard fonts
● Function keys
— Number of function keys	0
— Number of function keys with LEDs	0
● Keys with LED	No
● System keys	No
● Numeric keyboard	Yes; Onscreen keyboard
● alphanumeric keyboard	Yes; Onscreen keyboard
Touch operation
● Design as touch screen	Yes; Analog-resistive
Expansions for operator control of the process
● DP direct LEDs (LEDs as S7 output I/O)
— F1...Fx	0
● Direct keys (keys as S7 input I/O)
— F1...Fx	0
● Direct keys (touch buttons as S7 input I/O)	40
Installation type/mounting
Mounting position	vertical
Wall mounting/direct mounting	No
Mounting in portrait format possible	Yes
Mounting in landscape format possible	Yes
maximum permissible angle of inclination without external ventilation	35°
Supply voltage

Type of supply voltage	DC
Rated value (DC)	24 V
permissible range, lower limit (DC)	19.2 V
permissible range, upper limit (DC)	28.8 V
Input current
Current consumption (rated value)	0.75 A
Starting current inrush I²t	0.5 A²·s
Power
Active power input, typ.	18 W
Processor
Processor type	X86
Memory
Flash	Yes
RAM	Yes
Memory available for user data	12 Mbyte
Type of output
Info LED	No
Power LED	No
Error LED	No
Acoustics
● Buzzer	No
● Speaker	Yes
Time of day
Clock
● Hardware clock (real-time)	Yes
● Software clock	Yes
● retentive	Yes; Back-up duration typically 6 weeks
● synchronizable	Yes
Interfaces
Number of industrial Ethernet interfaces	1; 2 ports (switch)
Number of RS 485 interfaces	1; RS 422 / 485 combined
Number of RS 422 interfaces	0; together with RS 485
Number of RS 232 interfaces	0
Number of USB interfaces	2; USB 2.0
● USB Mini B	1; 5-pole
Number of 20 mA interfaces (TTY)	0
Number of parallel interfaces	0
Number of other interfaces	0
Number of SD card slots	2
With software interfaces	No
Industrial Ethernet
● Industrial Ethernet status LED	2
● Number of ports of the integrated switch	2
Protocols
PROFINET	Yes
Supports protocol for PROFINET IO	Yes
IRT	Yes; As of WinCC V12
PROFIBUS	Yes
EtherNet/IP	Yes
MPI	Yes
Protocols (Ethernet)
● TCP/IP	Yes
● DHCP	Yes
● SNMP	Yes
● DCP	Yes
● LLDP	Yes
WEB characteristics
● HTTP	Yes

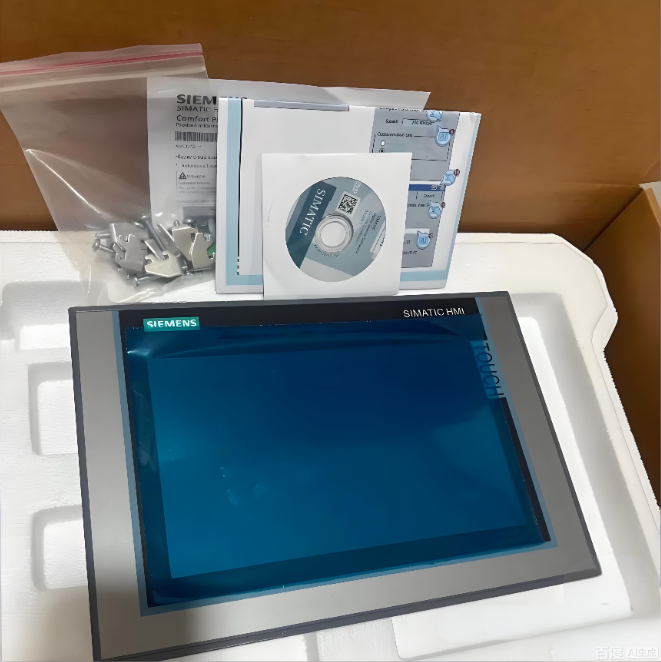

6AV2124-0JC01-0AX0 SIMATIC HMI TP900 Comfort, Comfort Panel, touch operation, 9" widescreen TFT display, 16 million colors, PROFINET interface

Specification
