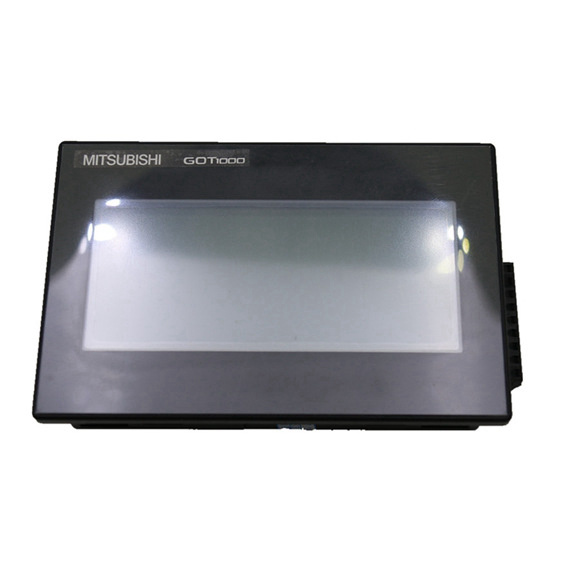

Mitsubishi HMI Touch screen GT1020-LBD/LWD
$1.00
▌Product Description
Product Details
Product Details 3.7″ [160 64 dots], STN monochrome (black and white) liquid crystal, 3 colors (green/red/orange) LED backlight, 24VDC, PLC connection interface: RS-422 Mitsubishi HMI Touch screen GT1020-LBD/LWD We are First Class mitsubishi plc dealer and mitsubishi plc distributor in China. We can Supply mitsubishi electric automation parts,such as Mitsubishi PLC,Mitsubishi Servo Motor,Mitsubishi HMI,Mitsubishi VFD and So on, 100% Original and new,In stock by Mitsubishi PLC Delivery time: Ready in stock and 1 days for ship out MOQ: 1pcs
Specification
Specification
| Item | Specifications | ||
| GT1020-LBD/LWD | GT1020-LBD2/LWD2 | GT1020-LBL/LWL | |
| Display section | STN monochrome (white/black) liquid crystal | ||
| Screen size | 3.7″ | ||
| Resolution | 160 64 dots (Horizontal format) | ||
| Display size | W86.4(3.4) H34.5(1.35) [mm](inch) (Horizontal format) | ||
| Display character | 16-dot standard font: 20 characters 4 lines (Horizontal format) | ||
| Display color | Monochrome (white/black) | ||
| Display angle | Left/Right: 30 degrees, Top: 20 degrees, Bottom: 30 degrees (Horizontal format) | ||
| Contrast adjustment | 16-level adjustment | ||
| Intensity of LCD only | 200 [cd/m2] (in green) | ||
| Life | Approx. 50,000h. (Time for display intensity to become 1/5 at operating ambient temperature of 25) | ||
| Backlight | LED with 3 available colors (green, red, orange) (no replacement required), Backlight status (colors, ON/BLINK/OFF) control, Adjustable screensaver activation time Setting the system information*2 enables PLC to control the backlight status. | ||
| Touch panel Number of touch keys | Maximum 50 keys/screen (Analog resistive film touch panel) | ||
| Key size | Minimum 2 2 dots (per key) | ||
| Simultaneous pressing of two (or more) areas (2-point press) | Not supported (Simultaneous pressing of two or more areas on the screen may activate the switch between those areas.) | ||
| Life | 1 million times or more (operating force 0.98N max.) | ||
| Memory C drive*3 | Flash memory (Internal), for storing project data (512 Kbytes or less), OS, Alarm history, Recipe data and time action setting value | ||
| life (Number of write times) | 100,000 times | ||
|
Built-in interface
PLC communication | • RS-422 1ch Transmission speed: 115,200/57,600/38,400/ 19,200/9,600/4,800bps Connector shape: Connector terminal block 9 pins Application: PLC communication (Hardware version A to D) • RS-422/485 1ch Transmission speed: 115,200/57,600/38,400/ 19,200/9,600/4,800bps Connector shape: Connector terminal block 9 pins Application: PLC communication Terminating resistor*4: Open/110 /330 (Switched by terminating resistor selector switch) (At factory shipment: 330 ) (Hardware version E or later) |
RS-232 1ch Transmission speed: 115,200/57,600/38,400/ 19,200/9,600/4,800bps Connector shape: Connector terminal block 9 pins Application: PLC communication |
RS-422 1ch Transmission speed: 115,200/57,600/38,400/ 19,200/9,600/4,800bps Connector shape: Connector terminal block 9 pins Application: PLC communication |
|
PC communication | RS-232 1ch Transmission speed : 115,200/57,600/38,400/19,200/9,600/4,800bps Connector shape : MINI DIN 6 pins (Female) Application : PC communication (Project data upload/download, OS installation, transparent function) | ||
| Buzzer output (a buzzer that sounds when touch keys are pressed) | Single tone (LONG/SHORT/OFF adjustable) | ||
| Environmental protective structure*5 | Equivalent to IP67 (JEM1030) (front section) (Horizontal format) | ||
| External dimensions | W113(4.44) H74(2.91) D27(1.06) [mm](inch) (Horizontal format) | ||
| Panel cutting dimensions | W105(4.13) H66(2.59) [mm](inch) (Horizontal format) | ||
