F940GOT-SWD-C English Specifications

General Features‌

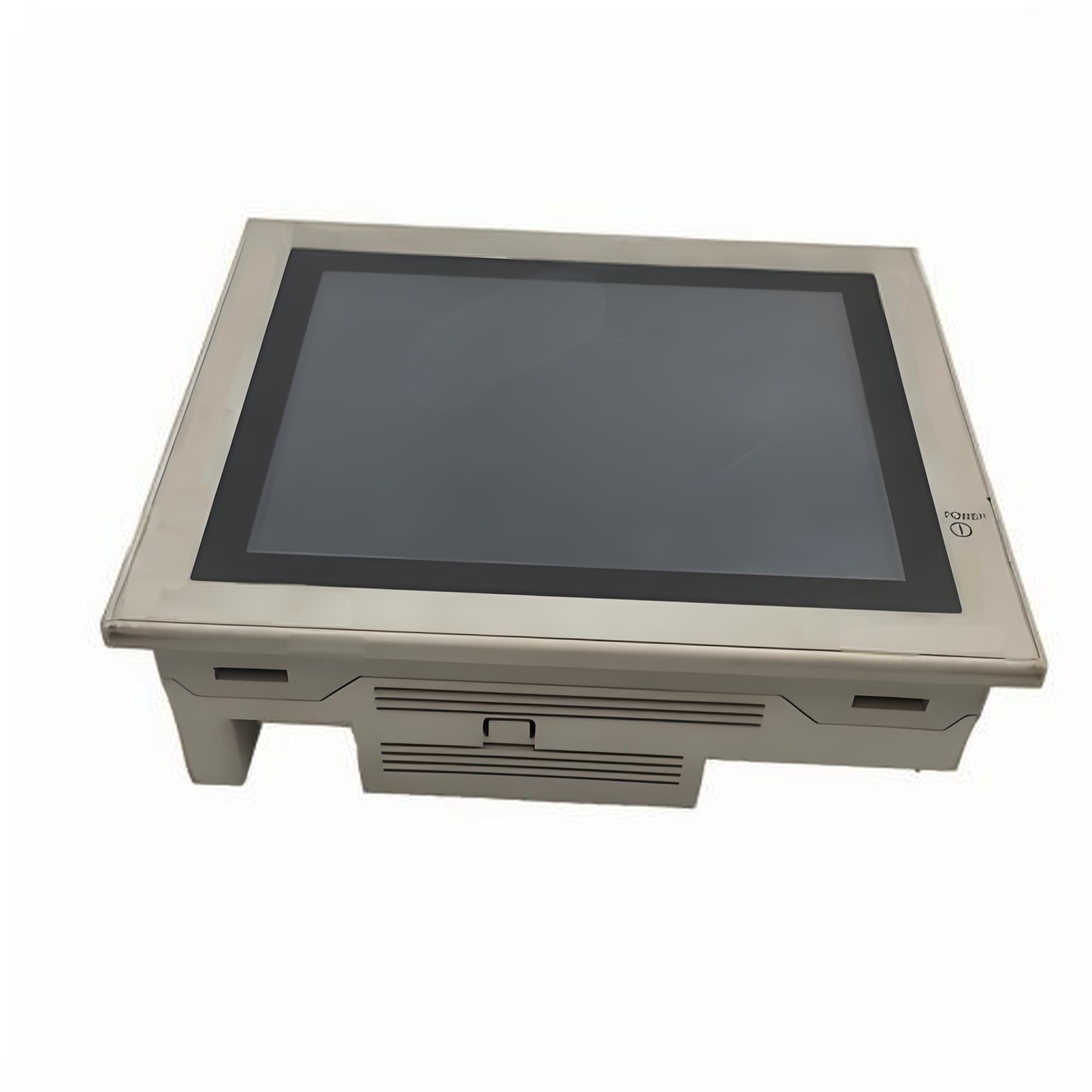

Product Type‌: Mitsubishi Electric Graphic Operation Terminal (GOT), part of the ‌F940GOT series‌ designed for industrial automation control systems‌.

Core Function‌: Touchscreen-based HMI for PLC parameter monitoring, data display, and multi-screen operation‌.

Power Supply‌: 24V DC (±10% tolerance), compatible with standard industrial power systems‌.

Hardware Specifications‌

Display‌:

Screen Type‌: Monochrome LCD (specific color scheme not explicitly stated, likely similar to F940GOT-LWD-C’s white/blue display)‌.

Resolution‌: 320×240 pixels, standard for F940GOT series‌.

Environmental Resistance‌:

Operating Temperature‌: 0–50°C (industrial-grade tolerance)‌.

Protection Rating‌: IP65F (dustproof and water-resistant front panel)‌.

Communication‌:

Supported Interfaces‌: RS-232C/RS-422 serial ports for PLC connectivity (e.g., Mitsubishi FX/A series)‌.

Compatibility & Integration‌

PLC Compatibility‌: Direct integration with ‌Mitsubishi FX and A series PLCs‌, enabling real-time control and data exchange‌.

Software Support‌: Configurable via Mitsubishi’s engineering tools (e.g., GT Works3 for HMI programming)‌.

Additional Notes‌

Certification‌: Meets industrial safety and electromagnetic compatibility (EMC) standards‌.

Documentation‌: For detailed specifications, refer to Mitsubishi’s official technical manuals or contact authorized distributors‌.

Note: Key parameters (e.g., exact power consumption or storage capacity) are not explicitly stated in available sources. Confirm critical details with official documentation‌.
