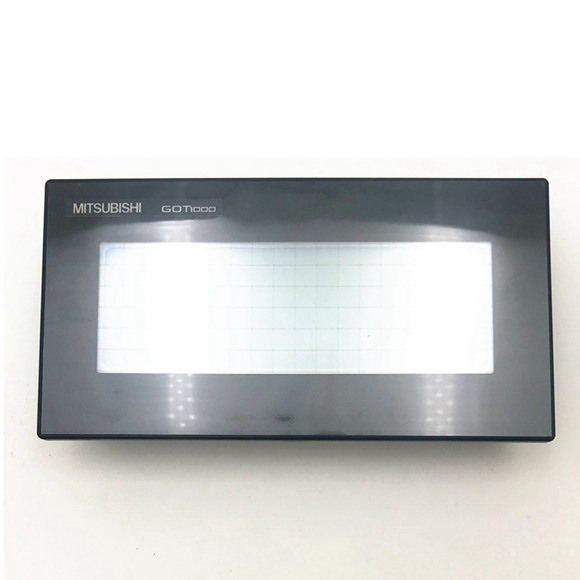

• Product Details 4.5″ [288 96 dots], STN monochrome (black and white) liquid crystal, 3 colors (white/red/pink) LED backlight, built-in battery 24VDC, PLC connection interface: RS-422 4.5″ Mitsubishi HMI Touch screen GT1030-LBDW/LWDW/HBDW/HWDW We are First Class mitsubishi plc dealer and mitsubishi plc distributor in China. We can Supply mitsubishi electric automation parts,such as Mitsubishi PLC,Mitsubishi Servo Motor,Mitsubishi HMI,Mitsubishi VFD and So on, 100% Original and new,In stock by Mitsubishi PLC Delivery time: Ready in stock and 1 days for ship out MOQ: 1pcs

• Specification

• Item	Specifications
  Mitsubishi HMI Touch screen	GT1030-LBDW/LWDW/ HBDW/HWDW	GT1030-LBDW2/LWDW2/ HBDW2/HWDW2	GT1030-LBLW/LWLW/ HBLW/HWLW
  Display section*1	STN monochrome (white/black) liquid crystal
  Screen size	4.5″
  Resolution	288 96 dots (Horizontal format)
  Display size	W109.42(4.3) H35.98(1.41) [mm](inch) (Horizontal format)
  Display character	16-dot standard font: 36 characters 6 lines (Horizontal format) 12-dot standard font: 48 characters 8 lines (Horizontal format)
  Display color	Monochrome (white/black)
  Display angle	Left/Right: 30 degrees, Top: 20 degrees, Bottom: 30 degrees (Horizontal format)
  Contrast adjustment	16-level adjustment
  Intensity adjustment	8-level adjustment
  Intensity of LCD only	• GT1030-L DW/L DW2/L  LW  300 [cd/m2] (in white) • GT1030-H DW/H DW2/H  LW  500 [cd/m2] (in white)
  Life	Approx. 50,000h. (Time for display intensity to become 1/5 at operating ambient temperature of 25)
  Backlight	LED with 3 available colors (white, red, pink) (no replacement required), Backlight status (colors, ON/BLINK/OFF) control, Adjustable screensaver activation time Setting the system information*2 enables PLC to control the backlight status.
  Touch panel Number of touch keys	Maximum 50 keys/screen (Matrix resistive film touch panel)
  Key size	Minimum 16 16 dots (per key)
  Simultaneous pressing of two (or more) areas (2-point press)	Enable
  Life	1 million times or more (operating force 0.98N max.)
  Memory C drive*3	Flash memory (Internal), for storing project data (1.5Mbytes or less), OS
  Life (Number of write times)	100,000 times
  D drive	SRAM (Internal), for storing alarm history, recipe data and time action setting value
  Battery	GT11-50BAT lithium battery
  Backup target	Clock data, alarm history, recipe data and time action setting value
