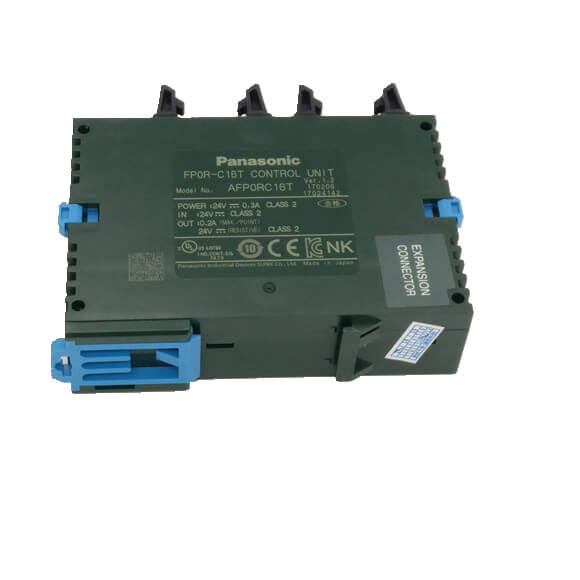

Panasonic plc FP0R series AFP0RC16T AFP0RC16P AFP0RC16CT AFP0RC16CP
$1.00
Part Number
Series#: FP0R
Model
Series#: FP0R
Brand
Others
Material
Others
▌Product Description
Product Details
Product Details Panasonic plc FP0R series AFP0RC16T AFP0RC16P AFP0RC16CT AFP0RC16CP We are First Class Panasonic plc dealer and Panasonic plc distributor in China. We can Supply Panasonic electric automation parts,such as Panasonic PLC,Panasonic Servo Motor,Panasonic HMI,Panasonic VFD and Panasonic Sensors and Panasonic Relays So on, 100% Original and new,In stock by Panasonic PLC Delivery time: Ready in stock and 1 days for ship out MOQ: 1pcs
| Product type of FP0R control unit | C10 | C14 | C16 | C32 | T32 | F32 |
| (Relay output type only) | (Relay output type only) | (Transistor output type only) | (Transistor output type only) | (Transistor output type only) | (Transistor output type only) | |
| Programming method / Control method | Relay symbol / Cyclic operation | |||||
| Control unit only (No expansion) | 10 points | 14 points | 16 points | 32 points | 32 points | |
| [Input: 6, Relay | [Input: 8, Relay | [Input: 8, Transistor | [Input: 16, Transistor | [Input: 16, Transistor Output: 16] | ||
| Output: 4] | Output: 6] | Output: 8] | Output: 16] | |||
| With expansion 1 | Max. 58 points | Max. 62 points | Max. 112 points | Max. 128 points | Max. 128 points | |
| Same type of control and expansion units (Note) | ||||||
| With expansion 2 | Max. 106 points | Max. 110 points | Max. 112 points | Max. 128 points | Max. 128 points | |
| Mix type of relay and transistor units (Note) | ||||||
| Program memory | EEPROM (no backup battery required) | |||||
| Program capacity | 16 k steps | 32 k steps | ||||
| Basic instructions | 110 types approx. | |||||
| High-level instructions | 210 types approx. | |||||
| Up to 3,000 steps | Basic instructions: 0.08 µs min. Timer instructions: 2.2 µs min. High-level instructions: 0.32 µs (MV instruction) min. | |||||
| 3,001st. and later steps | Basic instructions: 0.58 µs min. Timer instructions: 3.66 µs min. High-level instructions: 1.62 µs (MV instruction) min. | |||||
| Relay Internal relay (R) | 4,096 points | |||||
| Timer / Counter (T/C) | 1,024 points | |||||
| Memory area Data register (DT) | 12,315 words | 32,765 words | ||||
| Index register (IX, IY) | 14 words (IO to ID) | |||||
| Master control relay points (MCR) | 256 words | |||||
| Number of labels (JMP and LOOP) | 256 labels | |||||
| Differential points | Equivalent to the program capacity | |||||
| Number of step ladder | 1,000 stages | |||||
| Number of subroutines | 500 subroutines | |||||
| High speed counter | Single-phase: 6 points (50 kHz max. each) 2-phase: 3 channels (15 kHz max. each) (Note) | |||||
| Pulse output | Not available | 4 points (50 kHz max. each) 2 channels can be controlled individually. (Note) | ||||
| PWM output | Not available | 4 points (6 Hz to 4.8 kHz) | ||||
| Pulse catch input / interrupt input | Total 8 points (with high speed counter) | |||||
| Interrupt program | Input: 8 programs (6 programs for C10 only) / Periodic: 1 program / Pulse match: 4 programs | |||||
| Periodical interrupt | In units of 0.5 ms: 0.5 ms to 1.5 sec. / In units of 10 ms: 10 ms to 30 sec. | |||||
| Constant scan | In units of 0.5 ms: 0.5 ms to 600 ms | |||||
| One RS-232C port is mounted on each of C10CRS, C10CRM, C14CRS, C14CRM, C16CT, C16CP, C32CT, | ||||||
| RS-232C port | C32CP, T32CT, T32CP, F32CT and F32CP type (3P terminal block) Transmission speed (Baud rate): 2,400 to 115,200 bits/sec., Transmission distance: 15 m 9.843 ft. Communication method: half duplex | |||||
| Stored program and system register in EEPROM | ||||||
| Memory backup | ||||||
| Program and system register | ||||||
| Self-diagnostic function | Watchdog timer (690 ms approx.), program syntax check | |||||
| Real-time clock function | Not available | Available | Not available | |||
| Other functions | Rewriting in RUN mode, download in RUN mode (incl. comments) 8-character password setting, and program upload protection | |||||
