PART NO.:

3BSE091722R1

Weight:

1.5 KG

Actual Price:

Negotiated

Condition:

New Original With Sealed

Application:

Oil And Gas Factory

Color:

Normal

Highlight:

3BSE091722R1 ABB IO Module

,

DCS S900 ABB IO Module

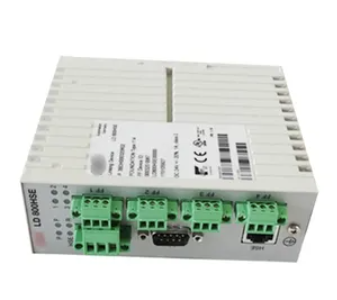

LD 810HSE EX Functions

The LD 810HSE Ex is a gateway between an FF High Speed Ethernet (FF-HSE) subnet and FF-H1 links. It supports device redundancy. The Linking Device meets protection class IP20 and is DIN rack mountable. It is powered by 24 V DC and supports Ethernet 10 Mbit/s or 100 Mbit/s.
The FOUNDATION™ Fieldbus Linking Device LD 810HSE Ex is registered as class 42c of the HSE profile, therefore providing the following functions:– It supports up to 4 separate FF-H1 links. In each of these links, the LinkingDevice operates as Link Master as well as SM Time Publisher.– Identification of devices connected to the H1 links– Configuration of connected H1 devices through System Management andNetwork Management via HSE– Access to the function blocks of connected H1 devices via HSE– Republishing of process data between H1 links– Republishing of process data from H1 to HSE and vice versa– Distribution of alarms and events sent by H1 devices
