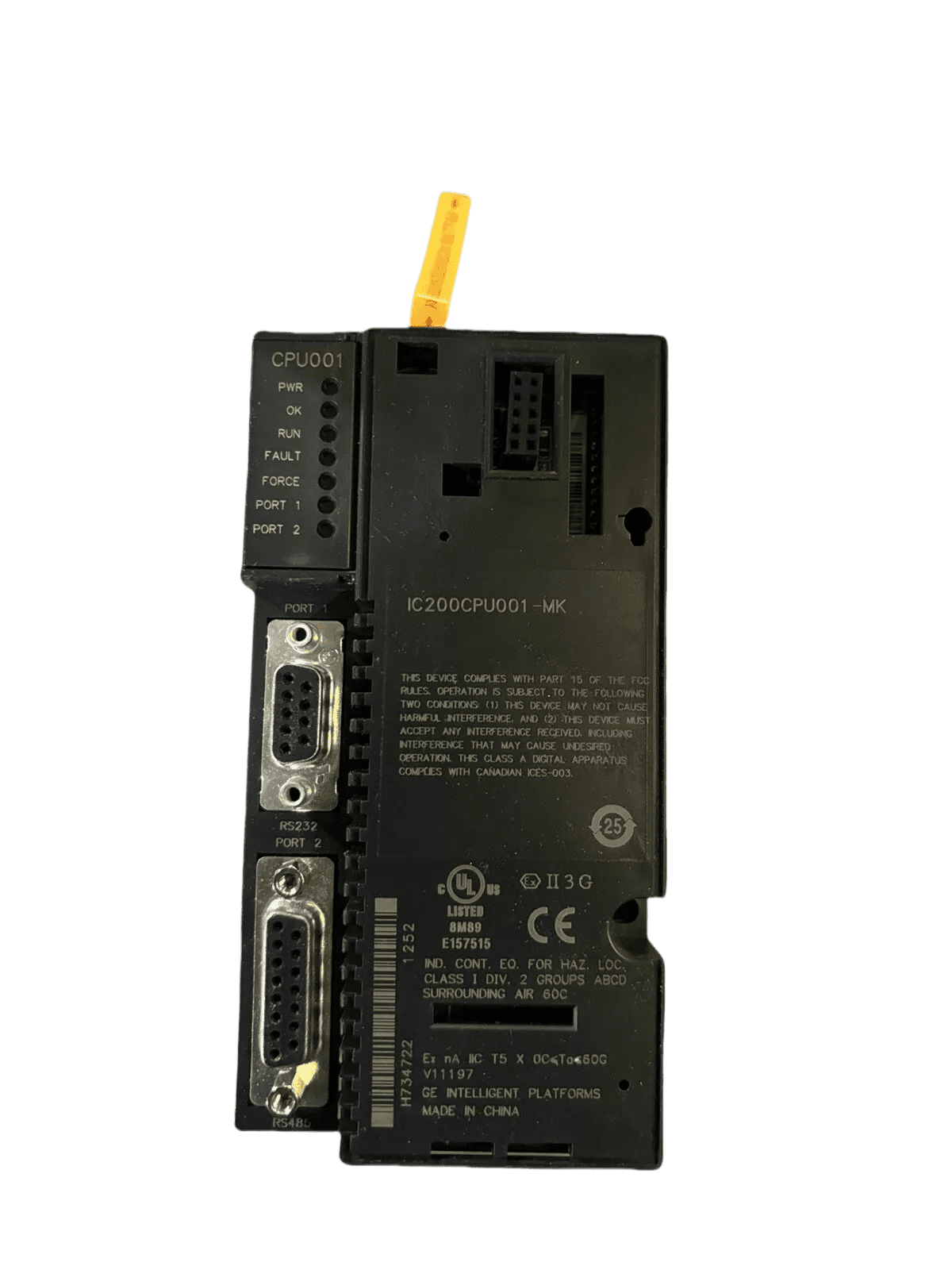

GE Fanuc Emerson Versamax IC200CPU001
$68.00
Part Number
IC200CPU001
Model
VersaMAx
Brand
Fanuc
Material
Others
▌Product Description
Product Details
The IC200CPU001 is a Central Processing Units (CPU). It is part of the VersaMax platform, currently under Emerson Automation, formerly produced by GE Intelligent Platforms (GE IP). This CPU is a compact controller that supports handling of 2048 Discrete inputs and 2048 Discrete outputs with configurable memory amounting to 34K Bytes which can be used for user program, registers and handling of Analog Input and Output words. It has Boolean execution speed of 1.8 ms / K, typical with built-in communication interfaces such as RS232 and RS485 ports compatible with SNP Slave, RTU Slave and Serial I/O.
Specification
| Technical specifications for IC200CPU001 | |
| Brand | GE Fanuc |
| Series | Versamax |
| Manufacturer | Emerson Automation / GE Fanuc (former) |
| Manufacturer | GE Intelligent Platforms (Former); Emerson Automation (Current) |
| Part Number | IC200CPU001 |
| Series | VersaMAx |
| Series | VersaMax |
| Description | Configurable CPU |
| Product type | CPU module |
| Part Number | IC200CPU001 |
| Serial Ports | 2 |
| User Memory | 34K Bytes |
| Product Description | Central Processing Unit (CPU) |
| Memory | 34 KB |
| Floating point math | Supported |
| Supported programming language | Ladder Diagram, Instruction list |
| Discrete Internal Bits | 1024 points |
| Typical Scan Rate | 1.8 milliseconds per 1K of logic (boolean contacts) |
| Discrete Inputs | 2048 points |
| Discrete Temporary Bits | 256 points |
| Internal memory | 384Kbytes configurable memory |
| Discrete Outputs | 2048 points |
| Boolean Execution Speed | 1.8 ms / K |
| Type of Memory Storage | RAM and Flash |
| Configurable Memory | 34K Bytes for Program, Registers, I/O Analog Words |
| Modbus Registers | 32 |
| Temporary bits | 256 points |
| Discrete Internal Bits | 1024 points |
| Real-Time Clock Accuracy | 100 ppm |
| Discrete Input | 2048 |
| Discrete Temporary Bits | 256 points |
| Backplane Current Consumption | 140 mA for 5 Volts, 100 mA for 3.3 Volts |
| Discrete output | 2048 |
| Global Discrete Bits | 1280 points |
| Communication Ports | One (1) RS232; One (1) RS485 |
| Supported serial protocols | Modbus RTU Slave, SNP, Serial I/O |
| Supported protocols: | SNP Slave, RTU Slave, Serial I/O |
| Floating Point data | Supported |
| Battery Backed RTC | Installed |
| Override functions | Supported |
| RTC Accuracy | 100ppm (0.01%) or +/- 9sec/day |
| Memory type | System flash, battery-backed RAM |
