AI-powered quality control made stress-free

Put an end to wasted material or faulty products. Put an end to long setup times or expensive reconfiguration when the product is changed. Put an end to complicated integration or data trapped on the shop floor.

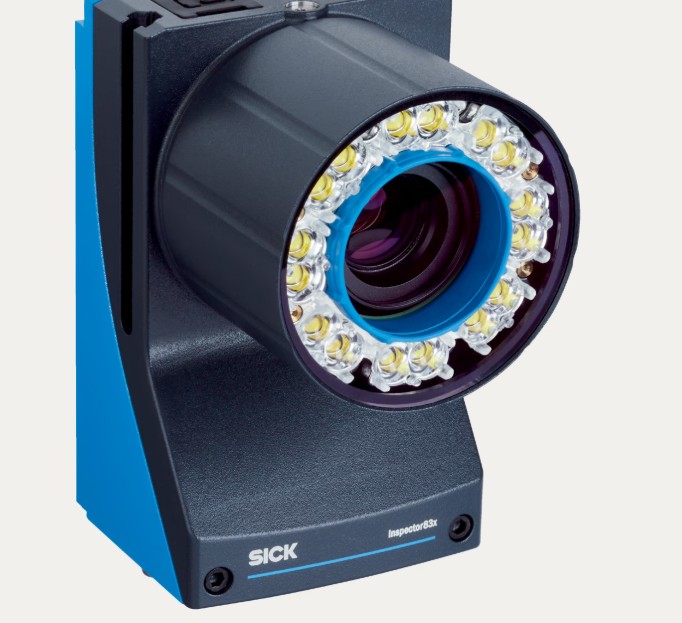

The Inspector83x is designed to make quality control easy and efficient. The cutting-edge AI technology enables non-expert users to rapidly solve vision applications such as quality assurance, defect detection, and sorting directly on the device by simply teaching it by examples.

The high-speed vision sensor provides an easy way to inspect every single part, every detail, every time. Connected, reliable, intelligent – stress-free.

V2D8305P-1MCICXAF1SXXXX

Part no.: 1140569

Machine vision

Inspector83x

• SensorApp: Nova Inspector

• Products by tasks: Classification, Identifying, Position determination, 1D code, 2D code, presence inspection, Quality check, measuring, 2D, OCR

• Illumination: Integrated

• Illumination color: White

• Lens: 12 mm, C-mount

• Working distance: 200 mm ... 2,500 mm

• Sensor resolution: 2,464 px x 2,048 px (5.1 Mpixel)

• Sensor: CMOS monochrome

• Optical focus: Adjustable focus (manually)
